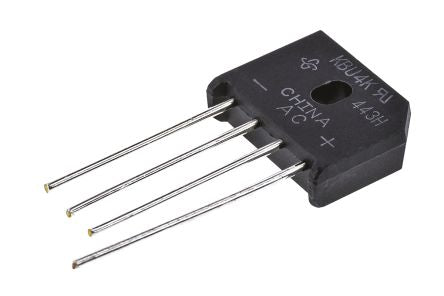

Vishay KBU4K-E4, Bridge Rectifier, 4A 800V, 4-Pin KBU [KBU4K-E4]; 165-2421
by Vishay
0₫
Mã kho: 1652421
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 4A |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Through Hole |
| Package Type | KBU |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 200A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 5µA |
| Length | 23.7mm |
| Dimensions | 23.7 x 7.1 x 19.3mm |
| Width | 7.1mm |
| Height | 19.3mm |
