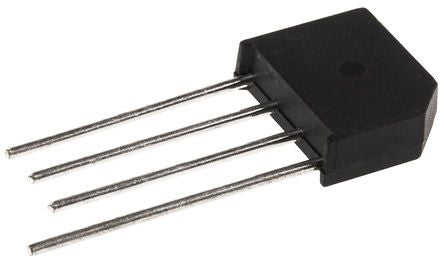

Vishay KBL02-E4/51, Bridge Rectifier, 4A 200V, 4-Pin KBL [KBL02-E4/51]; 903-4718
by Vishay
0₫
Mã kho: 9034718
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 4A |
| Peak Reverse Repetitive Voltage | 200V |
| Mounting Type | Through Hole |
| Package Type | KBL |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 200A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 19.5mm |
| Dimensions | 19.5 x 6.5 x 16.3mm |
| Height | 16.3mm |
| Width | 6.5mm |
