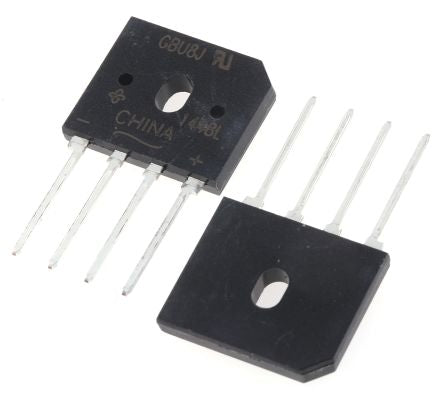

Vishay GBU8J-E3/51, Bridge Rectifier, 8A 600V, 4-Pin GBU [GBU8J-E3/51]; 178-0926
by Vishay
0₫
Mã kho: 1780926
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 8A |
Peak Reverse Repetitive Voltage | 600V |
Mounting Type | Through Hole |
Package Type | GBU |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 200A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 5µA |
Length | 22.3mm |
Dimensions | 22.3 x 3.56 x 18.8mm |
Width | 3.56mm |
Height | 18.8mm |
