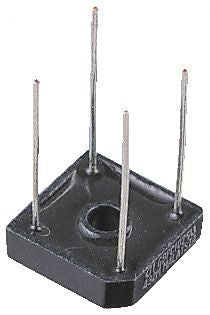

Vishay GBPC606-E4/51, Bridge Rectifier, 6A 600V, 4-Pin GBPC [GBPC606-E4/51]; 812-2313
by Vishay
0₫
Mã kho: 8122313
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 6A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | GBPC |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 175A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 500µA |
| Length | 16mm |
| Width | 16mm |
| Dimensions | 16 x 16 x 5.08mm |
| Height | 5.08mm |
