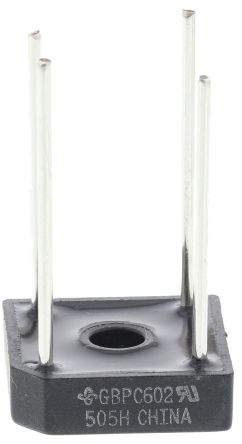

Vishay GBPC602-E4/51, Bridge Rectifier, 6A 200V, 4-Pin GBPC6 [GBPC602-E4/51]; 165-2825
by Vishay
0₫
Mã kho: 1652825
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 6A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 200V |
Mounting Type | Through Hole |
Package Type | GBPC6 |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 175A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 5µA |
Length | 16mm |
Height | 5.08mm |
Width | 16mm |
Dimensions | 16 x 16 x 5.08mm |
