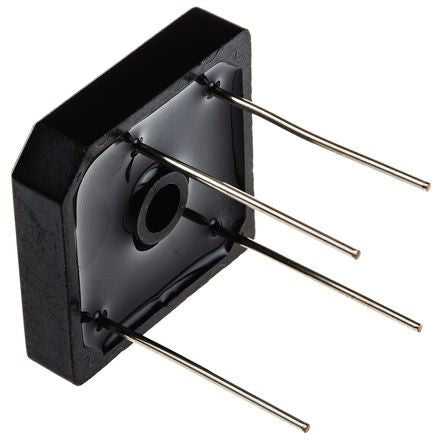

Vishay GBPC1201W-E4/51, Bridge Rectifier, 12A 100V, 4-Pin GBPC-W [GBPC1201W-E4/51]; 165-4927
by Vishay
0₫
Mã kho: 1654927
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 12A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 100V |
| Mounting Type | Through Hole |
| Package Type | GBPC-W |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 200A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 28.8mm |
| Junction Capacitance | 300pF |
| Dimensions | 28.8 x 28.8 x 7.87mm |
| Width | 28.8mm |
| Height | 7.87mm |
