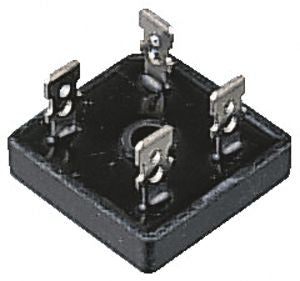

Vishay GBPC12005-E4/51, Bridge Rectifier, 12A 50V, 4-Pin GBPC [GBPC12005-E4/51]; 812-2243
by Vishay
0₫
Mã kho: 8122243
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 12A |
| Peak Reverse Repetitive Voltage | 50V |
| Mounting Type | Screw Mount |
| Package Type | GBPC |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 200A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 28.8mm |
| Height | 7.87mm |
| Width | 28.8mm |
| Dimensions | 28.8 x 28.8 x 7.87mm |
