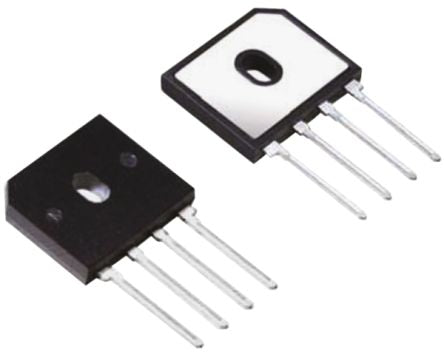

![Vishay BU1510-E3/45 1451693](http://nguyenxuong.com/cdn/shop/products/R8142708-01_444x355.jpg?v=1594274667)
Vishay BU1510-E3/45, Bridge Rectifier, 15A 1000V, 4-Pin BU [BU1510-E3/45]; 145-1693
by Vishay
0₫
Mã kho: 1451693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 15A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | BU |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 200A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.05V |
Peak Reverse Current | 250µA |
Length | 22.3mm |
Dimensions | 22.3 x 4.1 x 18.8mm |
Width | 4.1mm |
Height | 18.8mm |
