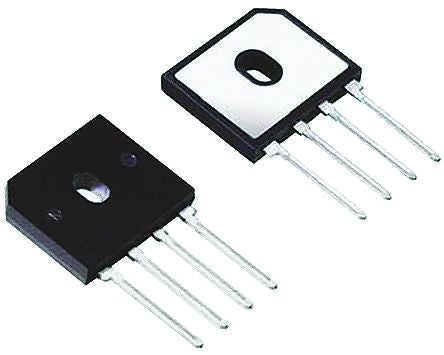

Vishay BU1208-E3/45, Bridge Rectifier, 12A 800V, 4-Pin BU [BU1208-E3/45]; 815-1266
by Vishay
0₫
Mã kho: 8151266
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 12A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Through Hole |
| Package Type | BU |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 150A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.05V |
| Peak Reverse Current | 250µA |
| Length | 22.3mm |
| Dimensions | 22.3 x 4.1 x 18.8mm |
| Width | 4.1mm |
| Height | 18.8mm |
