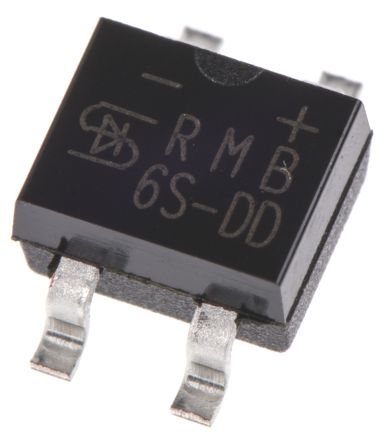

Taiwan Semiconductor MBS6 RC, Bridge Rectifier, 800mA 600V, 4-Pin TO-269AA [MBS6 RC]; 652-7501
0₫
Mã kho: 6527501
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 800mA |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Surface Mount |
| Package Type | TO-269AA |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 30A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 100µA |
| Length | 4.9mm |
| Width | 4mm |
| Dimensions | 4.9 x 4 x 2.7mm |
| Height | 2.7mm |
