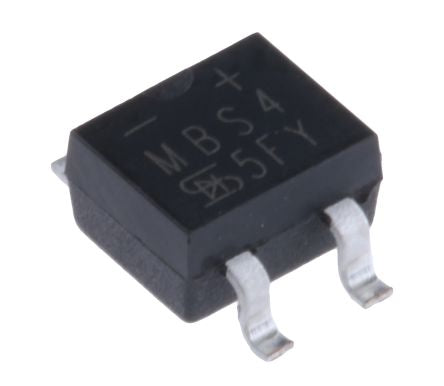

Taiwan Semiconductor MBS4 RCG, Bridge Rectifier, 800mA 400V, 4-Pin TO-269AA [MBS4 RCG]; 169-9002
0₫
Mã kho: 1699002
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 800mA |
Peak Reverse Repetitive Voltage | 400V |
Mounting Type | Surface Mount |
Package Type | TO-269AA |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 30A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 100µA |
Length | 4.9mm |
Height | 2.7mm |
Dimensions | 4.9 x 4 x 2.7mm |
Width | 4mm |
