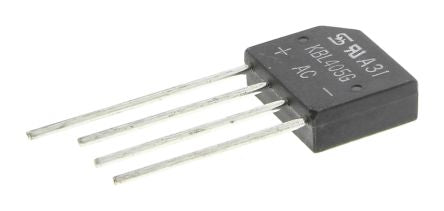

Taiwan Semiconductor KBL405G T0, Bridge Rectifier, 4A 600V, 4-Pin KBL [KBL405G T0]; 169-9172
0₫
Mã kho: 1699172
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 4A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | KBL |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 150A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 10µA |
| Length | 19.6mm |
| Dimensions | 19.6 x 6.48 x 16.38mm |
| Height | 16.38mm |
| Width | 6.48mm |
