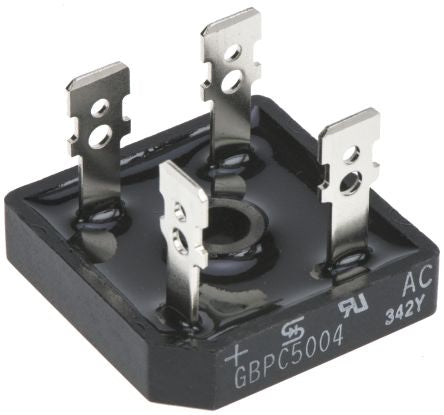

Taiwan Semiconductor GBPC5004 T0, Bridge Rectifier, 50A 400V, 4-Pin GBPC [GBPC5004 T0]; 169-9169
0₫
Mã kho: 1699169
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 50A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 400V |
| Mounting Type | Screw Mount |
| Package Type | GBPC |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 10µA |
| Length | 29mm |
| Dimensions | 29 x 29 x 7.87mm |
| Height | 7.87mm |
| Width | 29mm |
