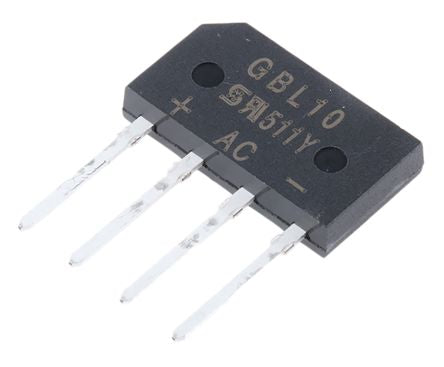

Taiwan Semiconductor GBL10 D2, Bridge Rectifier, 4A 1000V, 4-Pin GBL [GBL10 D2]; 687-5611
0₫
Mã kho: 6875611
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 4A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | GBL |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 150A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 20.3mm |
| Dimensions | 20.3 x 3.7 x 11.3mm |
| Height | 11.3mm |
| Width | 3.7mm |
