![Taiwan Semiconductor DBL103G C1 6875548](http://nguyenxuong.com/cdn/shop/products/R6625915-01_9bad1e5f-72aa-42d4-8f8a-64ae68ac4ef8_295x303.jpg?v=1594156829)

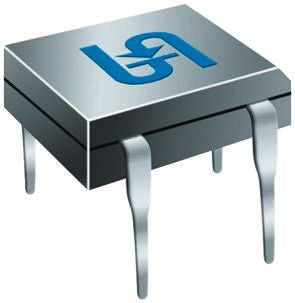

Taiwan Semiconductor DBL103G C1, Bridge Rectifier, 1A 200V, 4-Pin DBL [DBL103G C1]; 687-5548
0₫
Mã kho: 6875548
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 1A |
Peak Reverse Repetitive Voltage | 200V |
Mounting Type | Through Hole |
Package Type | DBL |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 40A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 10µA |
Length | 8.51mm |
Width | 6.5mm |
Dimensions | 8.51 x 6.5 x 2.6mm |
Height | 2.6mm |
