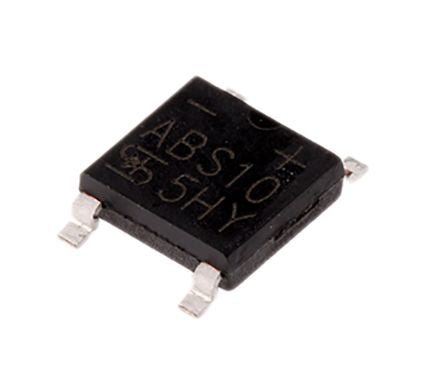

Taiwan Semiconductor ABS10 RGG, Bridge Rectifier, 1A 1000V, 4-Pin ABS [ABS10 RGG]; 748-4988
0₫
Mã kho: 7484988
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 1A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Surface Mount |
Package Type | ABS |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 30A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 950mV |
Peak Reverse Current | 150µA |
Length | 5.1mm |
Width | 4.5mm |
Height | 1.6mm |
Dimensions | 5.1 x 4.5 x 1.6mm |
