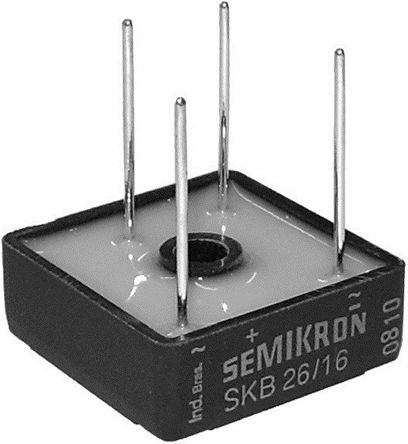

Semikron SKB 26/16, Bridge Rectifier, 18A 1600V, 4-Pin [SKB 26/16]; 905-6210
by Semikron
0₫
Mã kho: 9056210
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 18A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 370A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 2.2V |
| Peak Reverse Current | 5mA |
| Length | 28.8mm |
| Dimensions | 28.8 x 28.8 x 10mm |
| Width | 28.8mm |
| Height | 10mm |
