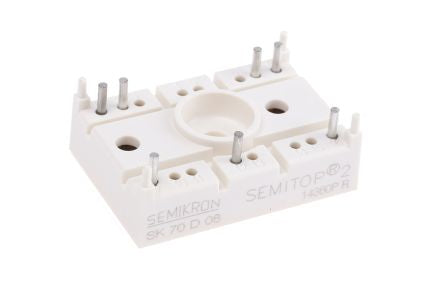

Semikron SK 70 D 08, 3-phase Bridge Rectifier Module, 70A 800V, 7-Pin SEMITOP2 [SK 70 D 08]; 330-0353
by Semikron
0₫
Mã kho: 3300353
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 70A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | PCB Mount |
| Package Type | SEMITOP2 |
| Pin Count | 7 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 370A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.25V |
| Peak Reverse Current | 4mA |
| Length | 40.5mm |
| Width | 28mm |
| Dimensions | 40.5 x 28 x 15.43mm |
| Height | 15.43mm |
