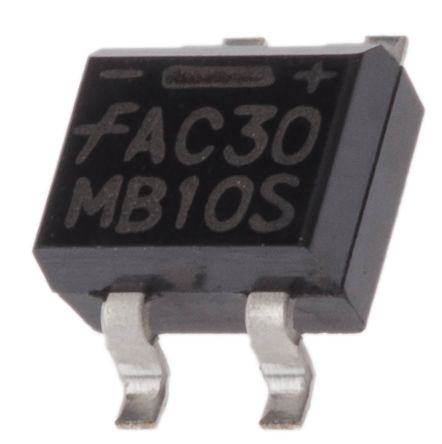

ON Semiconductor MB10S, Bridge Rectifier, 800mA 1000V, 4-Pin SOIC [MB10S]; 166-1967
0₫
Mã kho: 1661967
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 800mA |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 35A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 500µA |
| Length | 4.95mm |
| Width | 4.2mm |
| Dimensions | 4.95 x 4.2 x 2.5mm |
| Height | 2.5mm |
