![ON Semiconductor DF06S2 1869033](http://nguyenxuong.com/cdn/shop/products/P1869033-01_444x391.jpg?v=1594196918)

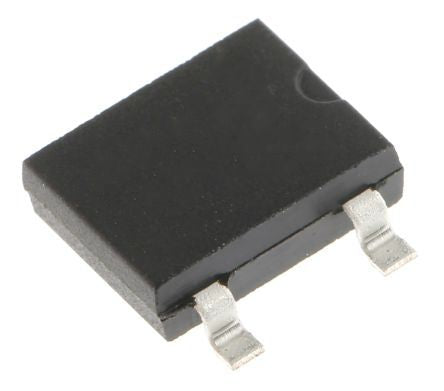

ON Semiconductor DF06S2, Bridge Rectifier, 2A 600V, 4-Pin SDIP [DF06S2]; 186-9033
0₫
Mã kho: 1869033
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 2A |
Peak Reverse Repetitive Voltage | 600V |
Mounting Type | Surface Mount |
Package Type | SDIP |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 85A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 500µA |
Length | 8.51mm |
Junction Capacitance | 23pF |
Width | 6.5mm |
Height | 2.6mm |
Dimensions | 8.51 x 6.5 x 2.6mm |
