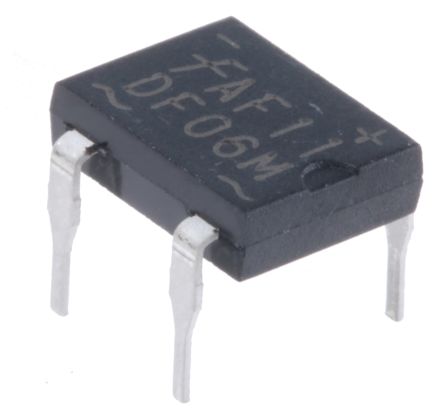

ON Semiconductor DF06M, Bridge Rectifier, 1.5A 600V, 4-Pin PDIP [DF06M]; 145-4287
0₫
Mã kho: 1454287
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 1.5A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 50A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 8.51mm |
| Dimensions | 8.51 x 6.48 x 3.3mm |
| Width | 6.48mm |
| Height | 3.3mm |
