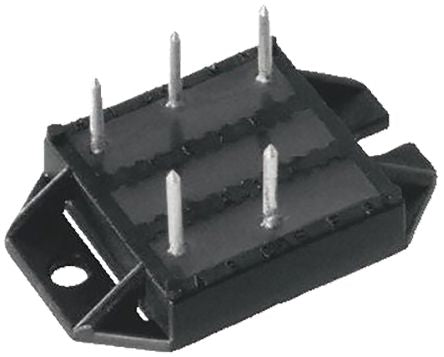

IXYS VUO86-16NO7, 3-phase Bridge Rectifier, 90A 1700V, 5-Pin ECO-PAC1 [VUO86-16NO7]; 168-4594
by IXYS
0₫
Mã kho: 1684594
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 90A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1700V |
| Mounting Type | PCB Mount |
| Package Type | ECO-PAC1 |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 595A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Reverse Current | 1.5mA |
| Length | 47mm |
| Dimensions | 47 x 30.3 x 9mm |
| Height | 9mm |
| Junction Capacitance | 18pF |
| Width | 30.3mm |
