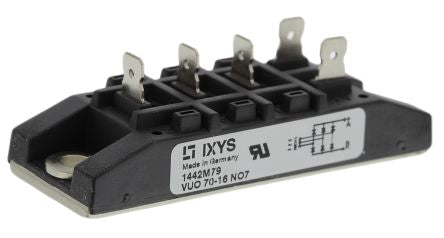

IXYS VUO70-16NO7, 3-phase Bridge Rectifier Module, 70A 1600V, 5-Pin FO T A [VUO70-16NO7]; 193-149
by IXYS
0₫
Mã kho: 193149
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 70A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | FO T A |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 600A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.7V |
| Peak Reverse Current | 500µA |
| Length | 80mm |
| Width | 29mm |
| Dimensions | 80 x 29 x 17mm |
| Height | 17mm |
