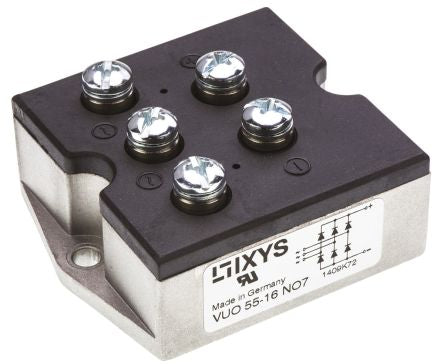

![IXYS VUO55-16NO7 193161](http://nguyenxuong.com/cdn/shop/products/F0193161-01_444x364.jpg?v=1594094874)
IXYS VUO55-16NO7, 3-phase Bridge Rectifier Module, 58A 1600V, 5-Pin PWS B [VUO55-16NO7]; 193-161
by IXYS
0₫
Mã kho: 193161
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 58A |
Bridge Type | Three Phase |
Peak Reverse Repetitive Voltage | 1600V |
Mounting Type | Panel Mount |
Package Type | PWS B |
Pin Count | 5 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 820A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -40 °C |
Peak Forward Voltage | 1.6V |
Peak Reverse Current | 300µA |
Length | 72mm |
Dimensions | 72 x 60 x 26mm |
Height | 26mm |
Width | 60mm |
