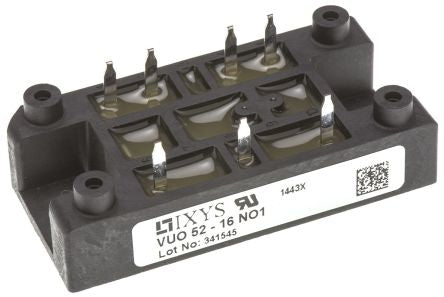

IXYS VUO52-16NO1, 3-phase Bridge Rectifier Module, 55A 1600V, 5-Pin V1-A-Pack [VUO52-16NO1]; 177-5343
by IXYS
0₫
Mã kho: 1775343
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 55A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | V1-A-Pack |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 375A |
| Maximum Operating Temperature | +130 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.46V |
| Peak Reverse Current | 300µA |
| Length | 63mm |
| Width | 31.6mm |
| Dimensions | 63 x 31.6 x 17mm |
| Height | 17mm |
