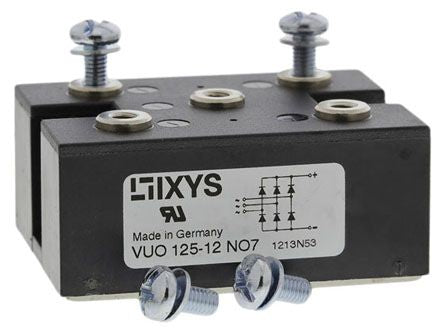

IXYS VUO125-12NO7, 3-phase Bridge Rectifier Module, 166A 1200V, 5-Pin [VUO125-12NO7]; 193-177
by IXYS
0₫
Mã kho: 193177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Three Phase |
| Peak Average Forward Current | 166A |
| Peak Reverse Repetitive Voltage | 1200V |
| Mounting Type | Panel Mount |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 1.95kA |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.3V |
| Peak Reverse Current | 300µA |
| Length | 67mm |
| Width | 50mm |
| Height | 31mm |
| Dimensions | 67 x 50 x 31mm |
