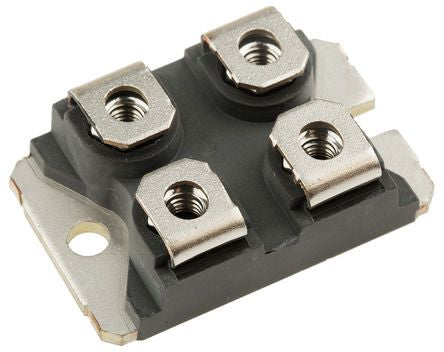

IXYS VBO40-16NO6, Bridge Rectifier Module, 40A 1600V, 4-Pin SOT-227B [VBO40-16NO6]; 920-0802
by IXYS
0₫
Mã kho: 9200802
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 40A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | SOT-227B |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 320A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.15V |
| Peak Reverse Current | 300µA |
| Length | 38.3mm |
| Width | 25.07mm |
| Height | 9.6mm |
| Dimensions | 38.3 x 25.07 x 9.6mm |
