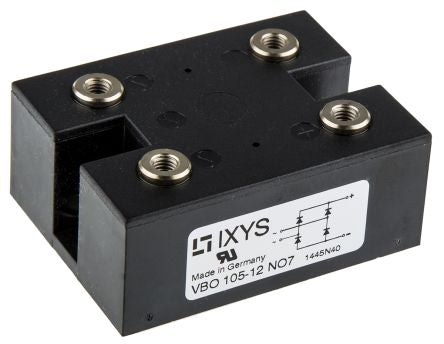

IXYS VBO105-12NO7, Bridge Rectifier Module, 107A 1200V, 4-Pin PWS C [VBO105-12NO7]; 168-4429
by IXYS
0₫
Mã kho: 1684429
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 107A |
| Peak Reverse Repetitive Voltage | 1200V |
| Mounting Type | Panel Mount |
| Package Type | PWS C |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 1.65kA |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.6V |
| Peak Reverse Current | 300µA |
| Length | 67mm |
| Dimensions | 67 x 50 x 31mm |
| Width | 50mm |
| Height | 31mm |
