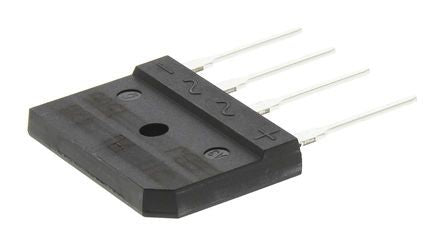

IXYS GBO25-16NO1, Bridge Rectifier, 25A 1700V, 4-Pin GBFP [GBO25-16NO1]; 125-8037
by IXYS
0₫
Mã kho: 1258037
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 25A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1700V |
| Mounting Type | Through Hole |
| Package Type | GBFP |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Reverse Current | 1.5mA |
| Length | 30.3mm |
| Dimensions | 30.3 x 4.8 x 20.3mm |
| Junction Capacitance | 10pF |
| Width | 4.8mm |
| Height | 20.3mm |
