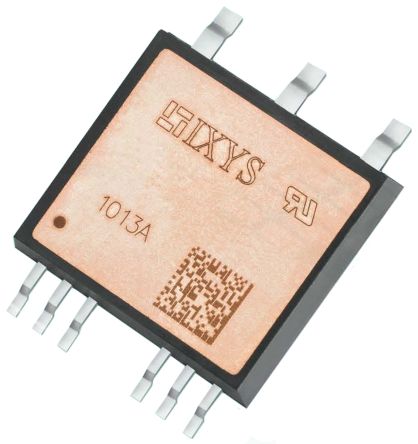

IXYS DMA90U1800LB, 3-phase Bridge Rectifier, 1800V, 9-Pin SMPD [DMA90U1800LB]; 177-5371
by IXYS
0₫
Mã kho: 1775371
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1800V |
| Mounting Type | Surface Mount |
| Package Type | SMPD |
| Pin Count | 9 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 380A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.93V |
| Peak Reverse Current | 1.5mA |
| Length | 25mm |
| Height | 5.5mm |
| Junction Capacitance | 11pF |
| Dimensions | 25 x 23 x 5.5mm |
| Width | 23mm |
