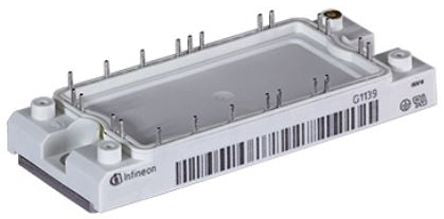

Infineon DDB6U134N16RRBOSA1, 3-phase Bridge Rectifier Module, 35A 1600V AG-ECONO2-7 [DDB6U134N16RRBOSA1]; 166-0840
by Infineon
0₫
Mã kho: 1660840
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | AG-ECONO2-7 |
| Diode Type | Silicon Junction |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 650A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 2.4V |
| Peak Reverse Current | 5mA |
| Length | 107.5mm |
| Junction Capacitance | 5.1nF |
| Height | 17mm |
| Width | 45mm |
| Dimensions | 107.5 x 45 x 17mm |
