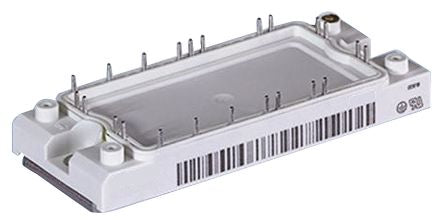

Infineon DDB6U104N16RRBOSA1, 3-phase Bridge Rectifier Module, 104A 1600V, 17-Pin [DDB6U104N16RRBOSA1]; 124-8798
by Infineon
0₫
Mã kho: 1248798
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 104A |
| Bridge Type | Three Phase |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | PCB Mount |
| Pin Count | 17 |
| Configuration | Single Plus MOSFET |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.3V |
| Peak Reverse Current | 5mA |
| Length | 107.5mm |
| Width | 45mm |
| Height | 17mm |
| Dimensions | 107.5 x 45 x 17mm |
