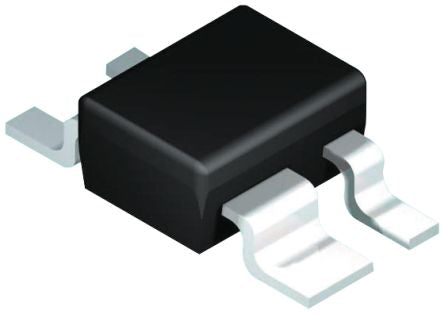

Infineon BAS4002ARPPE6327HTSA1, Bridge Rectifier, 40V, 4-Pin SOT-143 [BAS4002ARPPE6327HTSA1]; 911-4745
by Infineon
0₫
Mã kho: 9114745
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 40V |
| Mounting Type | Surface Mount |
| Package Type | SOT-143 |
| Pin Count | 4 |
| Diode Technology | Schottky |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 2A |
| Maximum Operating Temperature | +150 °C |
| Peak Forward Voltage | 790mV |
| Peak Reverse Current | 10µA |
| Length | 2.9mm |
| Dimensions | 2.9 x 1.3 x 0.9mm |
| Width | 1.3mm |
| Height | 0.9mm |
