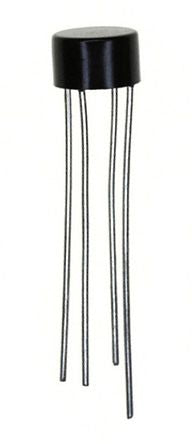

HY Electronic Corp W10G, Bridge Rectifier, 1.5A 1000V, 4-Pin WOG [W10G]; 917-9054
0₫
Mã kho: 9179054
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 1.5A |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | WOG |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 50A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 500µA |
Dimensions | 9.86 (Dia.) x 4.6mm |
Height | 4.6mm |
Diameter | 9.86mm |
