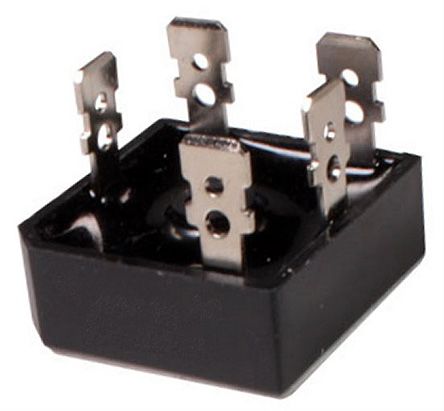

HY Electronic Corp SBR3506, 3-phase Bridge Rectifier, 35A 600V, 5-Pin SBR [SBR3506]; 917-9023
0₫
Mã kho: 9179023
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 35A |
Bridge Type | Three Phase |
Peak Reverse Repetitive Voltage | 600V |
Mounting Type | Through Hole |
Package Type | SBR |
Pin Count | 5 |
Diode Type | Silicon Junction |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 500A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.2V |
Peak Reverse Current | 5mA |
Length | 28.8mm |
Width | 28.8mm |
Dimensions | 28.8 x 28.8 x 11.5mm |
Height | 11.5mm |
