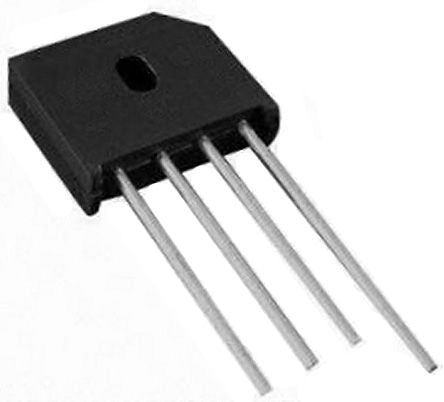

HY Electronic Corp KBU2510, Bridge Rectifier, 25A 1000V, 4-Pin KBU [KBU2510]; 171-1423
0₫
Mã kho: 1711423
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 25A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | KBU |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Diode Type | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 23.7mm |
| Width | 7mm |
| Dimensions | 23.7 x 7 x 19.8mm |
| Height | 19.8mm |
