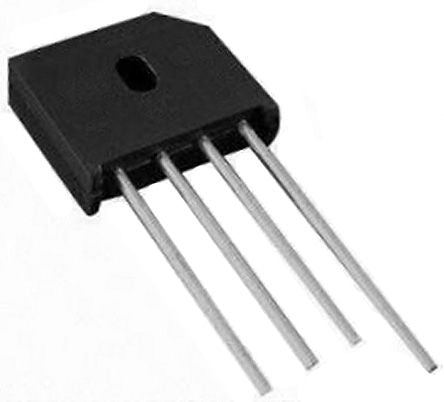

HY Electronic Corp KBU1510G, Bridge Rectifier, 15A 1000V, 4-Pin KBU [KBU1510G]; 917-8880
0₫
Mã kho: 9178880
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 15A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | KBU |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Diode Type | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 250A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 500µA |
Length | 23.7mm |
Height | 19.8mm |
Width | 7mm |
Dimensions | 23.7 x 7 x 19.8mm |
