![HY Electronic Corp KBPC3510 9179010](http://nguyenxuong.com/cdn/shop/products/F9179010-01_444x224.jpg?v=1593734765)

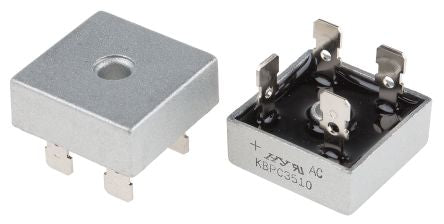

HY Electronic Corp KBPC3510, Bridge Rectifier, 35A 1000V, 4-Pin KBPC [KBPC3510]; 917-9010
0₫
Mã kho: 9179010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 35A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | KBPC |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Diode Type | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 400A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 10µA |
Length | 28.8mm |
Width | 28.8mm |
Height | 11.23mm |
Dimensions | 28.8 x 28.8 x 11.23mm |
