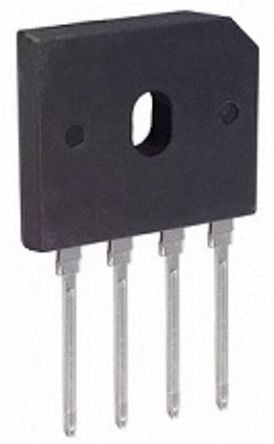

HY Electronic Corp GBU2006, Bridge Rectifier, 20A 600V, 4-Pin GBU [GBU2006]; 923-5466
0₫
Mã kho: 9235466
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 20A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | GBU |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 500µA |
| Length | 22.2mm |
| Height | 19.1mm |
| Dimensions | 22.2 x 3.53 x 19.1mm |
| Width | 3.53mm |
| Junction Capacitance | 70pF |
