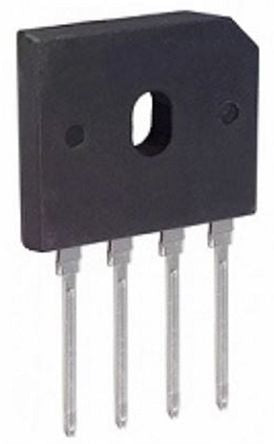

HY Electronic Corp GBU1010, Bridge Rectifier, 10A 1000V, 4-Pin GBU [GBU1010]; 923-5450
0₫
Mã kho: 9235450
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 10A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | GBU |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 220A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 500µA |
| Length | 22.3mm |
| Height | 18.8mm |
| Junction Capacitance | 60pF |
| Dimensions | 22.3 x 3.56 x 18.8mm |
| Width | 3.56mm |
