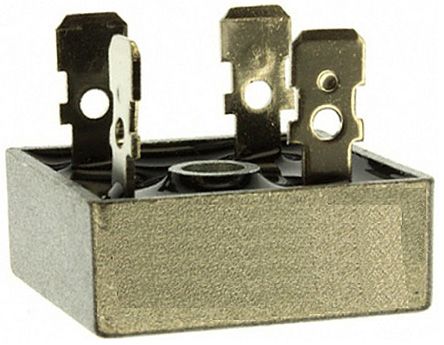

HY Electronic Corp GBPC5010, Bridge Rectifier, 50A 1000V, 4-Pin GBPC [GBPC5010]; 917-8837
0₫
Mã kho: 9178837
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 50A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Surface Mount |
| Package Type | GBPC |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 450A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 28mm |
| Height | 7.8mm |
| Dimensions | 28 x 28 x 7.8mm |
| Width | 28mm |
