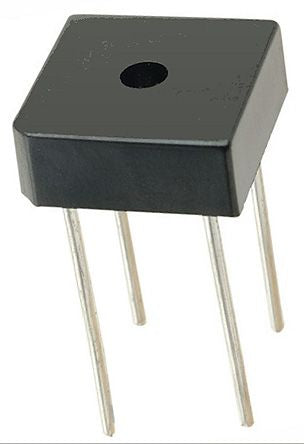

HY Electronic Corp GBPC3506W, Bridge Rectifier, 35A 600V, 4-Pin GBPC-W [GBPC3506W]; 146-2175
0₫
Mã kho: 1462175
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 35A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | GBPC-W |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -50 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 29mm |
| Dimensions | 29 x 29 x 8.5mm |
| Width | 29mm |
| Height | 8.5mm |
