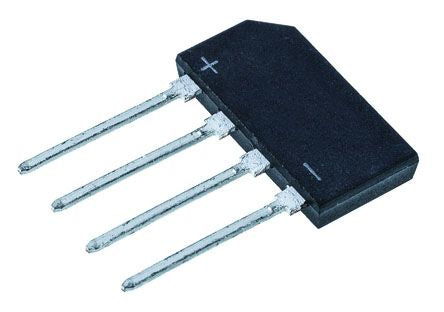

HY Electronic Corp GBP306, Bridge Rectifier, 3A 600V, 4-Pin GBP [GBP306]; 923-5422
0₫
Mã kho: 9235422
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | GBP |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 1mA |
| Length | 14.75mm |
| Dimensions | 14.75 x 3.6 x 10.6mm |
| Width | 3.6mm |
| Height | 10.6mm |
