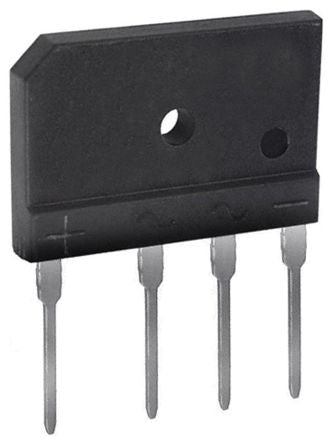

HY Electronic Corp GBJ3510, Bridge Rectifier, 35A 1000V, 4-Pin GBJ [GBJ3510]; 923-5407
0₫
Mã kho: 9235407
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | GBJ |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 30.3mm |
| Junction Capacitance | 85pF |
| Dimensions | 30.3 x 4.8 x 19.7mm |
| Height | 19.7mm |
| Width | 4.8mm |
