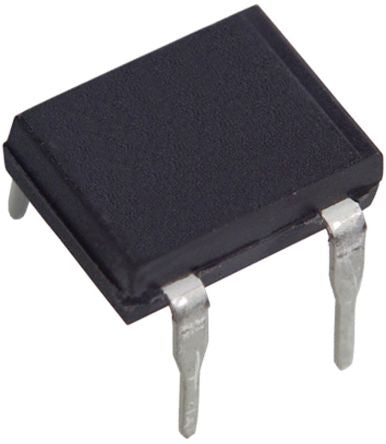

HY Electronic Corp DB207, Bridge Rectifier, 2A 1000V, 4-Pin DB [DB207]; 923-5485
0₫
Mã kho: 9235485
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 2A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | DB |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 8.8mm |
| Height | 3.4mm |
| Width | 6.5mm |
| Dimensions | 8.8 x 6.5 x 3.4mm |
| Junction Capacitance | 25pF |
