![HY Electronic Corp D3KB6 9235347](http://nguyenxuong.com/cdn/shop/products/R9235347-01_444x432.jpg?v=1594091639)

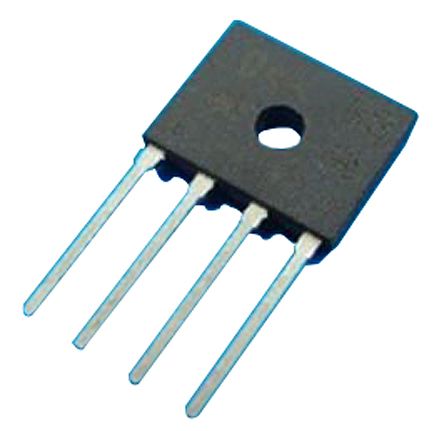

HY Electronic Corp D3KB6, Bridge Rectifier, 3A 600V, 4-Pin D3K [D3KB6]; 923-5347
0₫
Mã kho: 9235347
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 3A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 600V |
Mounting Type | Through Hole |
Package Type | D3K |
Pin Count | 4 |
Configuration | Single |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.05V |
Peak Reverse Current | 500µA |
Length | 14.1mm |
Dimensions | 14.1 x 3.3 x 11.1mm |
Width | 3.3mm |
Height | 11.1mm |
