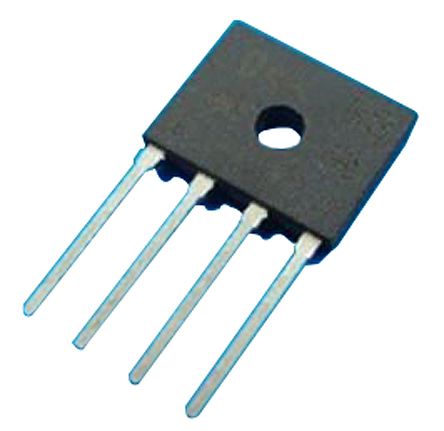

HY Electronic Corp D2KB6, Bridge Rectifier, 2A 600V, 4-Pin D3K [D2KB6]; 923-5331
0₫
Mã kho: 9235331
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 2A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | D3K |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 14.1mm |
| Height | 11.1mm |
| Width | 3.3mm |
| Dimensions | 14.1 x 3.3 x 11.1mm |
