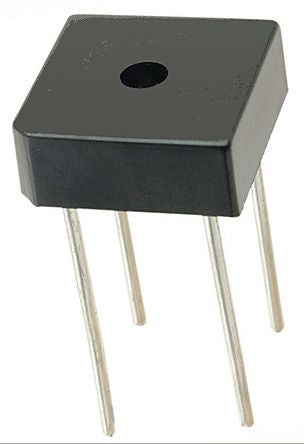

HY Electronic Corp BR1006SG, Bridge Rectifier, 10A 600V, 4-Pin BR-8 [BR1006SG]; 917-8783
0₫
Mã kho: 9178783
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 10A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | BR-8 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Diode Type | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 175A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 1mA |
| Length | 19.6mm |
| Dimensions | 19.6 x 19.6 x 7.5mm |
| Height | 7.5mm |
| Width | 19.6mm |
