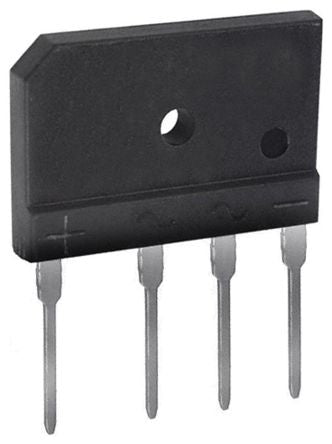

HY Electronic Corp 4GBJ410, Bridge Rectifier, 4A 1000V, 4-Pin 4GBJ [4GBJ410]; 923-5328
0₫
Mã kho: 9235328
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 4A |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | 4GBJ |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 25.3mm |
| Height | 15.3mm |
| Width | 4.8mm |
| Dimensions | 25.3 x 4.8 x 15.3mm |
| Junction Capacitance | 45pF |
