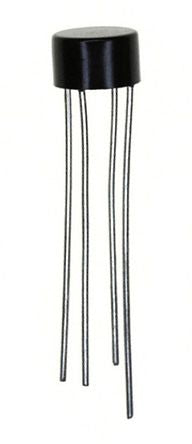

HY Electronic Corp 2W10MG, Bridge Rectifier, 2A 1000V, 4-Pin WOBM [2W10MG]; 146-2219
0₫
Mã kho: 1462219
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Peak Average Forward Current | 2A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | WOBM |
Pin Count | 4 |
Diode Type | Silicon Junction |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 60A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 1mA |
Height | 4.6mm |
Junction Capacitance | 30pF |
Diameter | 9.8mm |
Dimensions | 9.8 (Dia.) x 4.6mm |
